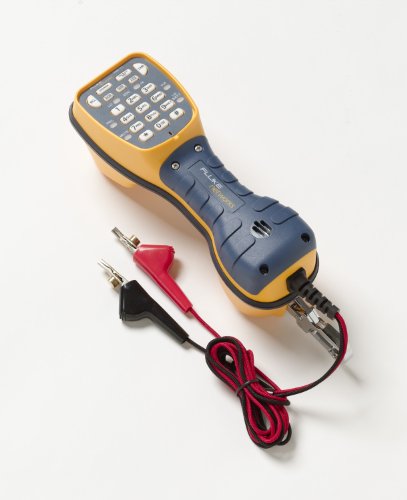

Fluke Networks TS44 Pro Test Set with Abn/pp

You looking to find the "
Fluke Networks TS44 Pro Test Set with Abn/pp" Good news! You can purchase
Fluke Networks TS44 Pro Test Set with Abn/pp with secure price and compare to view update price on this product. And deals on this product is available only for limited time.

Price: $358.99

Product Feature
- Detects dial tone and polarity, places and receives calls, indicates line voltage and current, and has a speakerphone for hands-free conversation during testing of telephone lines
- Available with various line cord connectors to suit specific applications
- Tests POTS quality on live DSL lines without disrupting data services and stores up to ten 23-digit numbers which can be speed-dialed via the keypad
- Passes a 20' drop test, and has a waterproof case that exceeds American Military Specification MIL-STD-810E
- Keypad with standard dialing keys plus function keys, along with LEDs that indicate polarity, current, voltage, mute, and battery status
Product Description
The Fluke Networks TS44 Pro telephone test set, available with various line cord connectors to suit specific applications, detects dial tone and polarity; places and receives calls; indicates line voltage and low loop current; has a one-way speaker for hands-free listening and a two-way speakerphone for hands-free conversation during testing; tests POTS (plain old telephone service) quality on live DSL lines without disrupting data services; and stores up to ten 23-digit telephone numbers which can be speed-dialed via the keypad. It provides tone or pulse operation. The test set has two basic modes of operation: talk mode for off-hook operations including verifying dialing and receiving calls, and monitor mode for on-hook operations including checking for an idle line, listening for line noise, and measuring DC voltage on the line. In monitor mode, the test set provides high-impedance monitoring of lines without disrupting service. When switching to talk mode, the data lockout feature tests the line for high-speed data signals and remains on hook and beeps if such signals are detected. The lockout can be overridden to pull dial tone from a noise line. This test set passes a 20' (6m) drop test and has a waterproof case that exceeds American Military Specification MIL-STD-810E. The keypad has 12 standard dialing keys including star and pound, and function keys to store, recall, and redial numbers and to pause for accessing a second dial tone when dialing through a PBX (private branch exchange), among other functions. LEDs on the unit indicate line polarity when off hook, normal or low (below 23mA) loop current, five different ranges of voltage detected, mute, and battery status. At a voltage greater than 140VDC, the test set locks out and will not allow off-hook operation. The current LED flashes for 5 seconds to indicate a reading below 23mA and remains solid for normal readings. The test set is made of high-impact plastic. A spring-loaded belt clip at the base of the unit provides a secure hold on belt loops and D-rings. Additional specifications include various environmental operating conditions. Telephone test sets, also called butt sets, are used by telecom technicians to troubleshoot and maintain copper-wire voice-subscriber lines such as POTS (plain old telephone service) lines.
Specifications |
---|
Line current range | Off-hook: 10 to 100mA |
DC resistance | Off-hook: 150� (nominal); on-hook: greater than 3M |
AC impedance | Off-hook: 600Ω (nominal), 300 to 3,400 Hz; on-hook: greater than 120k �, 300 to 3,400 Hz |
Rotary dial pulse rate | 10 + or �� 1 pulses per second |
DTMF (dual-tone multi-frequency) tone frequency error | + or � 1.5% maximum |
Memory capacity | Ten 23-digit speed-dial numbers, one redial number |
Power source | Shared line power; 9V alkaline battery (included) for test set when on-hook and for speaker when off-hook |
Dimensions | 254 x 96 x 107mm/10 x 3.75 x 4.25 inches (H x W x D) |
Weight | 0.68kg/1.5lb. |
*H is height, the vertical distance from the lowest to highest point; W is width, the horizontal distance from left to right; D is depth, the horizontal distance from front to back.
Datacom and telecom installation and test devices, such as toners and test sets, check cabling and wiring to help ensure proper connections and operation. Tone generator and probe sets, also called toners, are used to locate, trace, and isolate cables in copper media networks. Telephone test sets, also called butt sets, are specialized telephones that connect to telephone lines to check for proper operation and to isolate trouble. Some test sets incorporate a TDR (time-domain reflectometer) and toner for determining cable length and locating faults. While certain devices may be used on live networks, others are only suitable for inactive networks. Field technicians and installers use these devices to set up, maintain, and troubleshoot datacom and telecom cabling within a building or in outside plant (OSP) applications.
Fluke Networks, a division of Fluke Corporation, manufactures tools and software for network deployment, performance management, and troubleshooting. The company, founded in 1992, is headquartered in Everett, WA.
What's in the Box?
- Fluke Networks TS44 Pro telephone test set
- 9V battery
- Instructions
Fluke Networks TS44 Pro Test Set with Abn/pp Review
This is the test set of choices for many RBOCs (Verizon, Qwest, etc.) I found out why, after I bought mine 5 years ago. I put this set through so many abuses, drops, and bumps. It has fallen off of ladders, and hit the pavement. It's also been in severe rain storms, and winter conditions. This set is designed to last, take a beating, and just keep going.
I did however break the clip mount on the top with one particular drop. That's no problem though, since the clip can mount on both sides. It's better used at the bottom anyhow, so you can use the speaker, and dial from your belt.
This set has a two way speakerphone too, which is great, if you need to take some notes, or wait on hold. It also is Data Safe, with filtering, so you can have no worries of interrupting DSL signals. The voltage tester also comes in handy. It has LO/HI indicators. If you see the HI, then it's a good indication of a high cap circuit, or something with a bit of extra voltage going across. The ABN/PP is the best part of the whole deal. If you're not familiar with ABN, it's a bet of nails that penetrate insulation to get into the copper, for test access. When removed, the holes self heal, and no exposure occurs (i.e. doesn't open up the wire for future corrosion issues)
In short, if you want a test set that will work for years to come, get this. I have a Tempo ID'R for my Caller ID testing. They unfortunately don't seem to make them any more, but mine is working fine. If you're worried about caller ID, I'd just recommend getting a separate box for testing.
